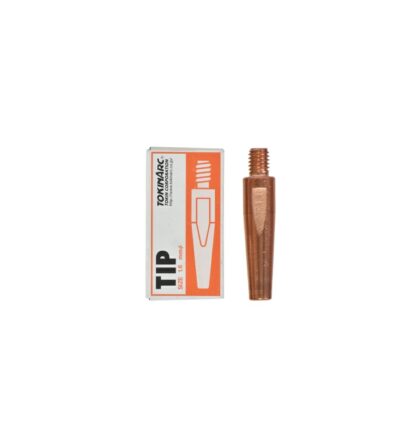

TOKIN D tip Ø1.6 023011

TOKIN CO2/MAG semi-automatic welding D-tip, φ1.6mm, 023011 (for Daihen), 10 pieces per box.
Standard welding tip with a total length of 40.5mm.

The D tip is designed for semi-automatic welding using carbon dioxide/mixed gas (argon and carbon dioxide) welding.
It is attached to the tip of a semi-automatic welding torch. This product is designed for 1.6mm wire.
Please select the tip with the appropriate wire diameter for your wire.

Tokin’s D tip is made of zirconium chromium copper and allows for smooth wire feeding by drilling. It
can be used in a wide range of welding processes, from semi-automatic welding to robot welding.

Tokin’s standard tips come in two different lengths: the N-tip 45mm (Panasonic specification) and the D-tip 40.5mm (DAIHEN specification).
Both the N-tip and D-tip are compatible with the genuine tips of Panasonic and Daihen semi-automatic welding torches.

Equivalent products from other manufacturers:
Panasonic welding tips TET01695, TET01678, TET01696,
Daihen welding tips K980B95, K980C34, L7250B06
